The Simple Way of Non-invasive Measurements

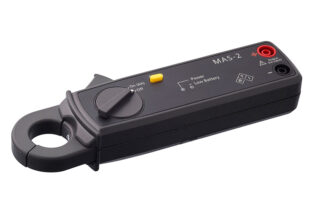

The MAS-2 Probe is a clamp-on probe for non-invasive measurement of mA (tube current) and mAs. The major advantages are that the probe is easy to use and safe. The probe is simply clamped on to the high voltage cable and then ready for measurements, no connection inside the X-ray generator is required. Together with your meter direct reading of mA and mAs as well as waveform are obtained.
Art. No (with Piranha and Cobia Flex): 9730006-00
Art.No (with Barracuda): 9720601-00
Specifications with Piranha & Cobia Flex
| Type | MAS-2 |
| Current range | 10 – 4000 mA |
| Inaccuracy | ±5 % or ±2 mA (±3 % at 250 mA) |
| Charge range | 0.1 mAs – 9999 mAs |
| Frequency range | DC – 5/500 Hz (-3 dB) |
| Size | 183 x 61 x 36 mm |
| Connector | Hirose |
| Maximum cable diameter | 24 mm |
| Power source | 9 V “6LR61” Alkaline battery |
